Stainless Steel 353 MA
UNS S30815
ASTM A 240, A 276, A 312
A 358, A 409, A 473, A 479
A 480, A 813, A 814

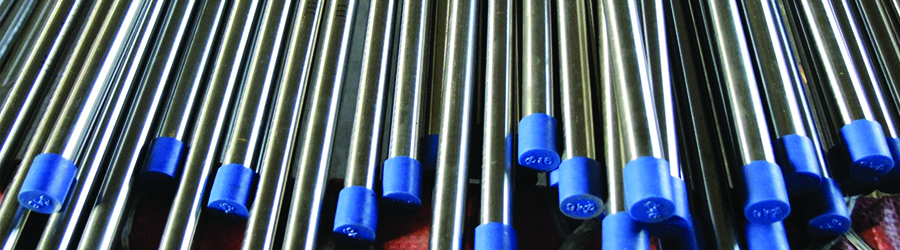

Forms of 353 MA Available at Mega Mex
- Sheet
- Plate
- Bar
- Pipe
- Welding Material: Bare Weld Wire, Coated Electrode and Spooled Weld Wire
353 MA Stainless Overview
Stainless 353 MA is a lean austenitic heat resistant alloy with high strength and outstanding oxidation resistance. 353 MA maintains its heat resistant properties by advanced control of micro alloy additions. The use of rare earth metals in combination with silicon gives superior oxidation resistance up to 2000°F. Nitrogen, carbon and a dispersion of rare earth and alkali metal oxides combine to provide creep rupture strength comparable to the nickel base alloys. A wide variety of components requiring high strength at elevated temperatures such as heat exchangers, kilns, stack dampers and oven components are common applications for 353 MA.
Chemical Composition, %
| Element | Content (%) |
| Iron, Fe | 37.18 |
| Nickel, Ni | 35 |
| Chromium, Cr | 25 |
| Cerium, Ce | 1.3 |
| Silicon, Si | 1.3 |
| Nitrogen, N | 0.17 |
| Carbon, C | 0.05 |
Physical Properties of ASTM 353 MA
| Properties | Metric | Imperial |
| Density | 7.90 g/cm3 | 0.285 lb/in3 |
Mechanical Properties of ASTM 353 MA
| Properties | Metric | Imperial |
| Tensile strength | 720 MPa | 104000 psi |
| Yield strength | 360 MPa | 52200 psi |
| Modulus of elasticity | 190 GPa | 27600 ksi |
| Elongation at break | 50% | 50% |
Applications of ASTM 353 MA
Stainless steel grade 353MA is used in the following application areas:
- Components requiring heat and creep resistance.
- For use over 550°C for equipment and components in iron, steel, and non-ferrous industries, cement industry, engineering industry, and energy conservation plants.
